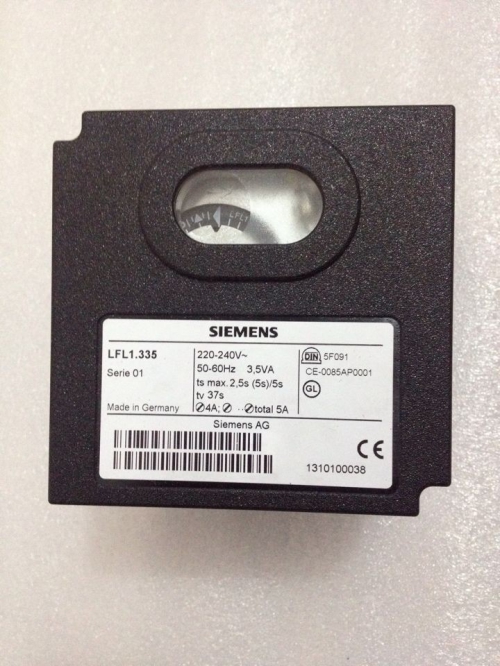

LFL1.335西门子程控器
主电压 AC220V -15%...240V 10%
AC100V -15%...110V 10%
主频率 50...60Hz ?6%
内部保险丝 T6，3H 250V to IEC 127
外部保险丝 16A
功率 3VA
重量 1000g(底座165g)
保护等级 IP40
额定电流 端子1高等(可短时间20A)端子3，6，7，9...11，15...204A(可短时间20A)端子4，5之间开关1A端子4，12之间开关1A端子4，14之间开关高等(可短时间20A)
运输环境 IEC 721-3-2
内部条件 class 2K2
温度范围 -50... 70oC
湿度 <95%
运行环境 IEC 721-3-3
内部条件 class 3K5
温度范围 -20... 60oC
湿度 <95%
The burner cools of the LFL1... range are designed for the cool and supervision of forced draught gas burners of both expanding flame and interrupted pilot construction of medium to high capacity. They are universally applicable and can be used for both multistage and modulating burners as well as for dual-fuel burners and for burners of ary air heaters (WLE to DIN 4794).
